1971 Intel 4004

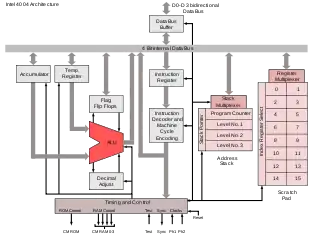

Diagram der Architektur des Intel 4004

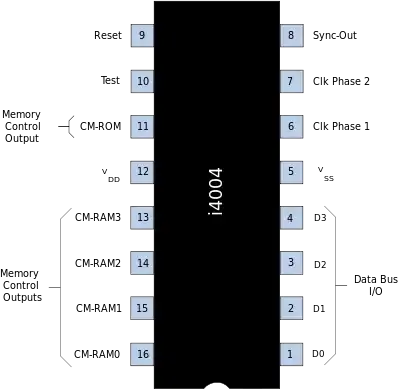

Pinbelegung des Intel 4004.

Daten:

  • 4 Bit Wörter
  • 12 Bit Adressen
  • 8 Bit Anweisungen
  • 60.000 Anweisungen pro Sekunde
  • Geschwindigkeit: 740 kHz
  • Sockel: 16 Pins
  • Befehlssatz: 46 Befehle
  • Register: 16 zu 4 Bit


1972 Intel 8008

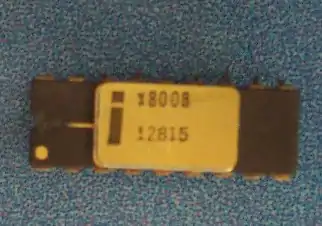

Intel 8008 Prozessor

Daten:

  • 8-Bit Prozessor
  • Geschwindigkeit: 0,5 MHz - 0,8 MHz
  • Sockel: 18 Pins


1974 Intel 8080

Intel 8080 CPU


Daten:

  • Geschwindigkeit: 2 MHz
  • Sockel: 40 Pins
  • Befehlssatz: 46 Befehle
  • Register: 7 zu 8 bit
  • Accumulator: 8 bit
  • Stack Pointer: 16 bit
  • Program Counter: 16 bit
  • Datenbus: 8 bit
  • Adressbus: 16 bit
